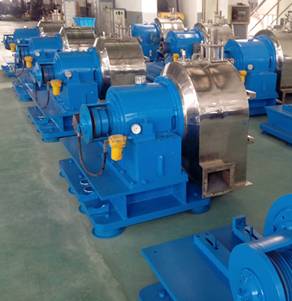

臥式螺旋卸料過濾離心機

產品分類: LWL型臥式螺旋卸料過濾離心機
產品簡介:
訂購熱線:025-86130417
    主要應用場合:Products are mainly used:
    用于乙二酸、芒硝、砒唑、AH-鹽、過硫酸銨、石膏、硝酸銀、磷酸銨、硫酸銨、碳酸鈉、硫代硫酸銨、離子交換樹脂、氯化鈉、蒽、氯酸鈉、阿司匹林、甲酸鈉、硫酸錳、硼砂、甲基纖維素、偏硼酸鈉、甲酸鈣、硝酸鈉、過硼酸鈉、磷酸鈉、檸檬酸、聚本乙烯、四硼酸鈉、聚苯乙烯醇、大蘇打、硫酸銅、鉀堿(碳酸鈉)、灑石酸、結晶蘇打、鉀礬、磷酸三鈉、碳酸氫鉀、硫酸鋅、季戊四醇、冰醋酸、氯化鉀、五硫化二鉀、磷酸鉀、硫酸鉀。
    Apply to adipic acid ,salt take ,pyrazolene ,AH-salt ,ammonium persuphate ,gypsum ,silver nitrate ,ammonium phosphate ,ammonium sulphate ,sodium carbonate ,ammonium thiosulphate ,ion exchange resin ,sodium chloride ,anthracene ,sodium chlorate ,aspirin ,sodium metaborate ,calcium fomiate ,sodium nitrate ,sodium perborate ,sodium phosphate ,citric acid ,sodium sulphate ,polystyrene ,sodium phosphate ,citric acid ,sodium sulphate ,polystyrene ,sodium tetraborate ,polyvinylacohol ,sodium thiosulphate ,copper sulphate ,potash ,tartaric acid ,crystal soda ,potash alum ,trisodium phosphate ,potassium bicarbonate ,zinc sulphate ,pentaerythrite .plastic granules ,glacial acetic acid ,potassium choride ,potassium pensuphate ,potassium phosphate ,potassium sulphate.
    pic_shebei_02s[1]

    臥式螺旋卸料過濾離心機由電機帶動轉鼓及同心安裝的輸料螺旋,以一定的差速同向高速旋轉,物料由進料管連續引入,均勻分布 到轉鼓底段濾網壁上,在離心力作用下,液相物穿過濾網和轉鼓壁濾孔排出轉鼓,經排液口排出機外。固相物截留在轉鼓內形成濾渣,濾渣在離心力的錐面分力和輸料螺旋的共同作用下,連續不斷地向轉鼓大端移動排出轉鼓,經卸料槽排出機外。
    Suspension enters into the spiral cavity via the feeding pipe, then enters into the drum via the spray nozzle designed at the bottom of the cone end closer to the screw head; under the centrifugal force, the liquid in the slurry is separated away through a screen that’s designed on the rotary wall, while the solid particles are trapped in the drum; meanwhile, the solid particles in the drum, under the action of centrifugal force and the spiral-drum differential speed, move from the small end to the big end of the drum, in which process, the centrifugal force grows rapidly due to the increased swing diameter, and the solid phase that has high moisture content at the initial entry becomes low-moisture contained solid phase at its discharge from the drum, therefore automatic and continuous separation of solid and liquid phases is achieved.
    型號及主要技術參數 Types and parameters
    序號
    NO.
    基本型號
    Basic Type
    進料量
    Thrpughput
    (T/H)
    電機功率
    Motor power
    (Kw)
    轉鼓轉速
    Bowl speed
    (r/min)
    分離因數
    G-Force
    外形尺寸
    Figure Dimensions
    (mm)
    重量
    Weight
    (Kg)
    1 LWL250 0.5-3 5.5 3600 1810 1100/1400/1000 700
    2 LWL350 1-6 11 3000 1760 1300/1500/1100 1200
    3 LWL450 2-10 22 2500 1570 1400/1600/1300 1600
    4 LWL530 4-20 30 2000 1180 1500/1700/1400 2100
    5 LWL630 8-30 37.5 1750 1080 1900/1600/1600 2600

    產品結構特點 Structure and Features
    1.轉鼓、螺旋等主要零件可用耐蝕不銹鋼、鈦合金制造。
      1.Bowl and scroll and other main parts are made steel or titanium
    2.專用過濾網,濾網厚度達2.5mm,使用壽命更長。
     2.Fiter screen with 2.5mm thickness long life
    3.轉鼓轉速無級可調。
    ?。?Stepless speed regulation for the bowl
    4.螺旋差轉速的可調、有級或無級調速。
     4.Adjustable of the differential speed with regulation
    5.簡單可靠的潤滑方式。
    5.Simple lubrication

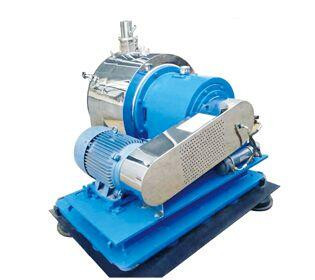

     LWL型臥式螺旋卸料過濾離心機 LWL horizontal spiral centrifuge filter
    我們所提供的離心機,在通常狀態下與物料接觸部份的材質為304不銹鋼,當然如果您有要求,我們同樣可以提供其他材料的機器,如316L、雙相不銹鋼、鈦材等,我們也提供變頻控制箱。
    Generally ,a tubular centrifuge we provide has 304 stainless at where it contacts the liquid ,if you require we can also manufacture the centrifuges with other materials ,e.g. 316L or duplex stainless or titanium .we can also provide variable frequency control .
